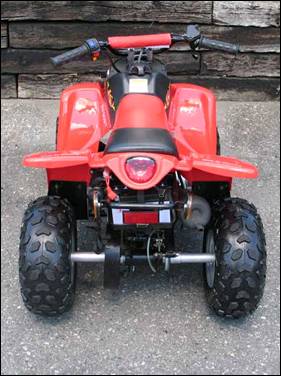

Kaishan XY50ST-II ATV Ottawa Gatineau
  • Dimensions (LxWxH)(mm): 1260 x 810 x 860
  • Wheel Base (mm): 900
  • Net. Weight (kg): 110
  • Max. Load: 100 KG / 220 LBS
  • Spark Plug: A7TC
  • Spark Plug Gap: 0.6 - 0.8
  • Front Tire Size: 19 x 7 - 8
  • Rear Tire Size: 19 x 7 - 8
  • Compression Ratio: 9.0 : 1
  • Standard Power (kw/r/min): 1.8 / 7500
  • Max. Torque (N.m/r/min): 2.5 / 5000
  • Max. Speed (km/h): 40
  • Bore x Stroke (mm): 39.0 x 41.4
  • Idle Speed (r/min): 1500
  • Brake Distance (30km/h): 4.00m
  • Displacement (ml): 49.0
  • Engine: IP39FMB
  • Climbability: 22 degrees
  • Starting: Electric
  • Transmission: Automatic / Chain Drive
  • Colour: Yellow, Red
